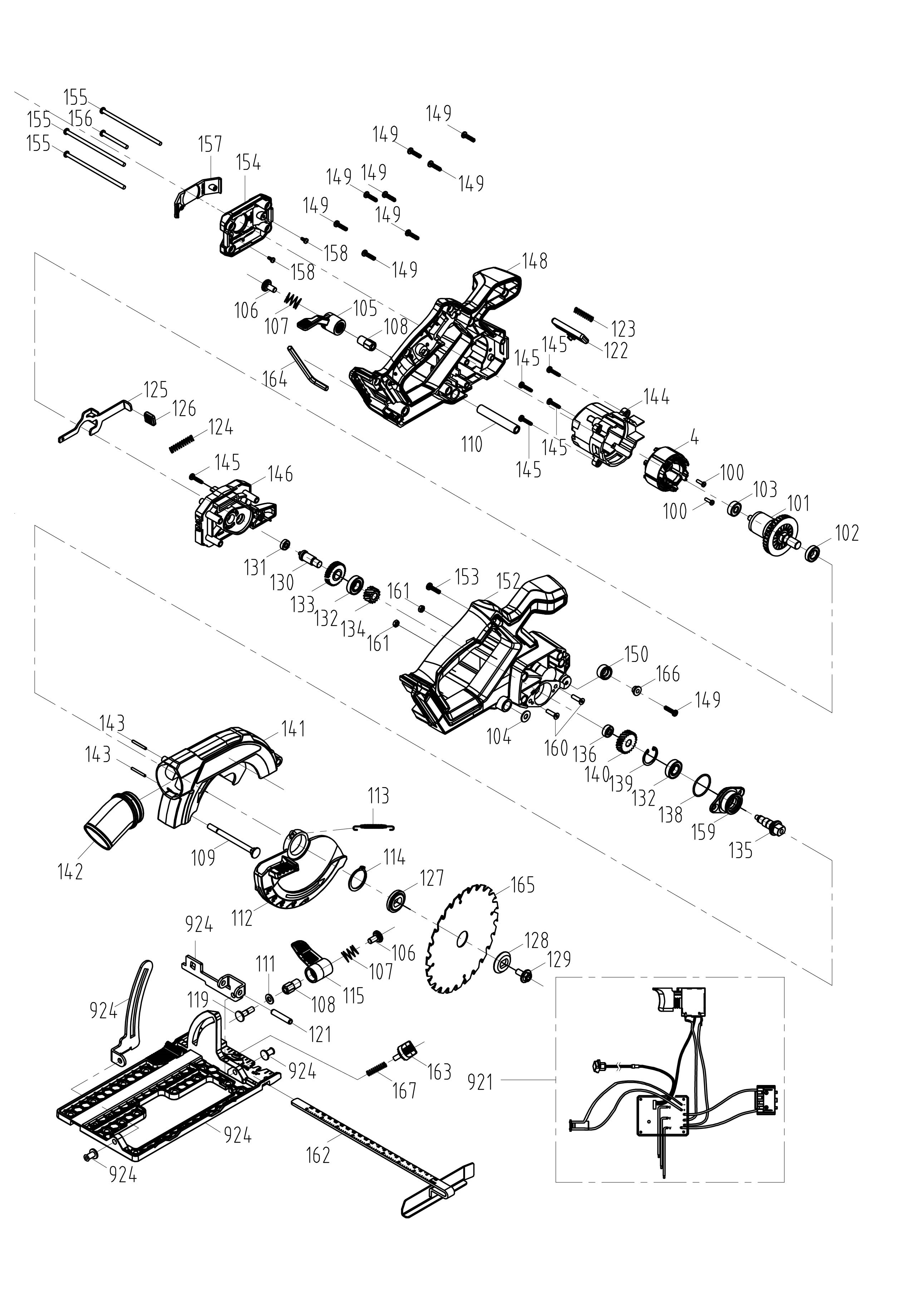

Looking for a replacement part? Contact our Service Team and we'll help you find the correct spare part for your product.
Article description

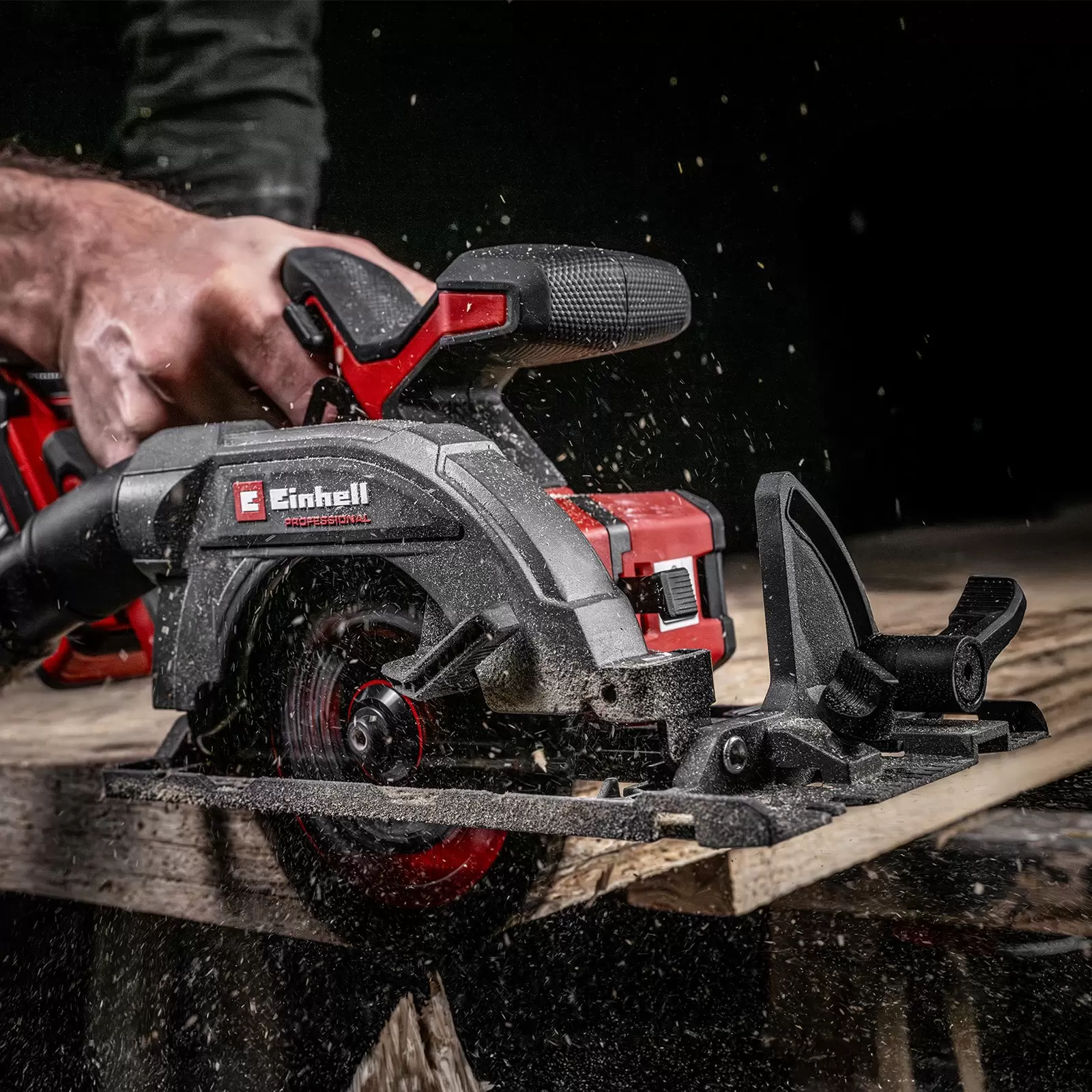

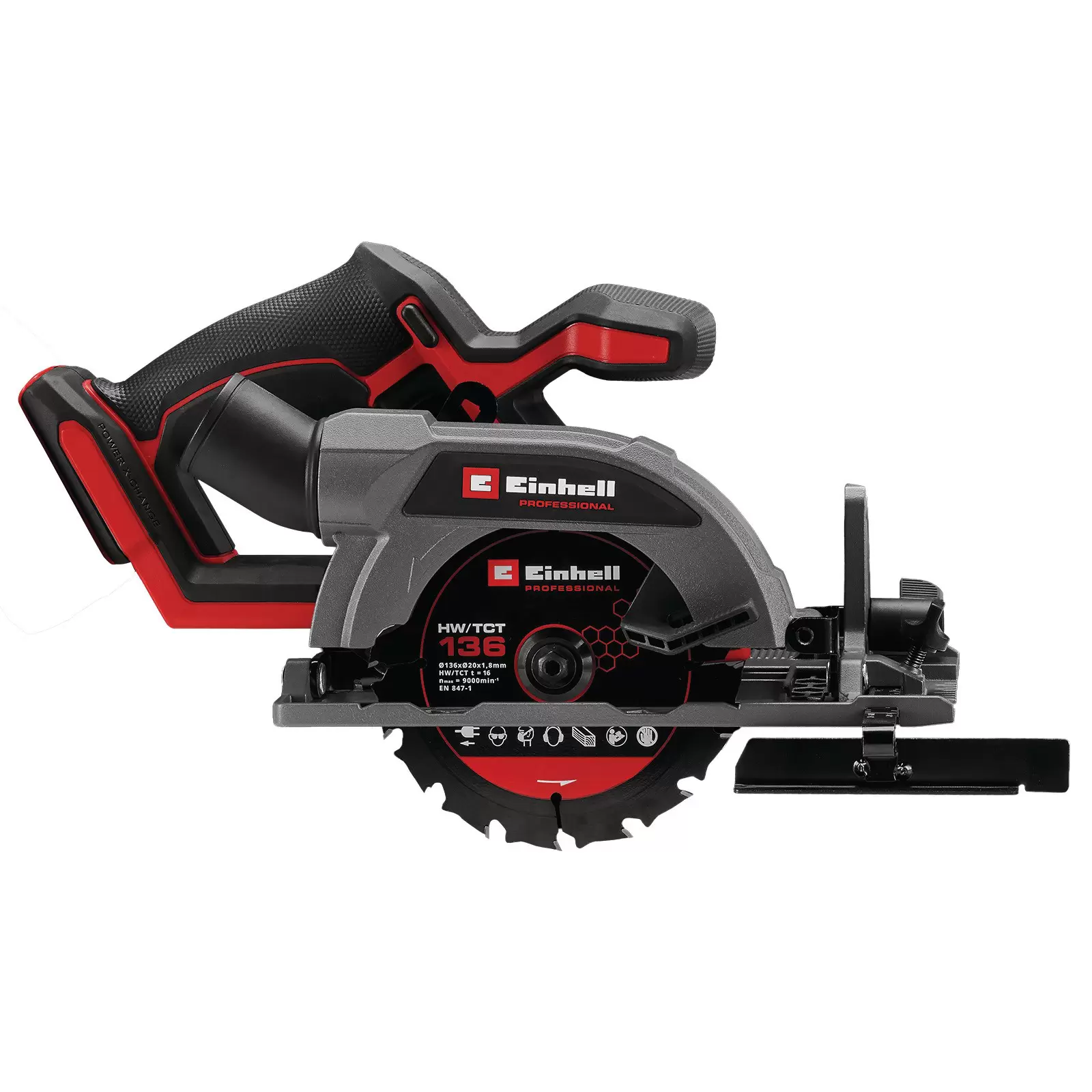

The Einhell Professional 18V 136mm Sub Compact Circular Saw Skin is a must‑have for professionals. Lightweight yet powerful, it’s more compact than comparable saws, making it easy to handle and highly flexible in the workshop or garage.

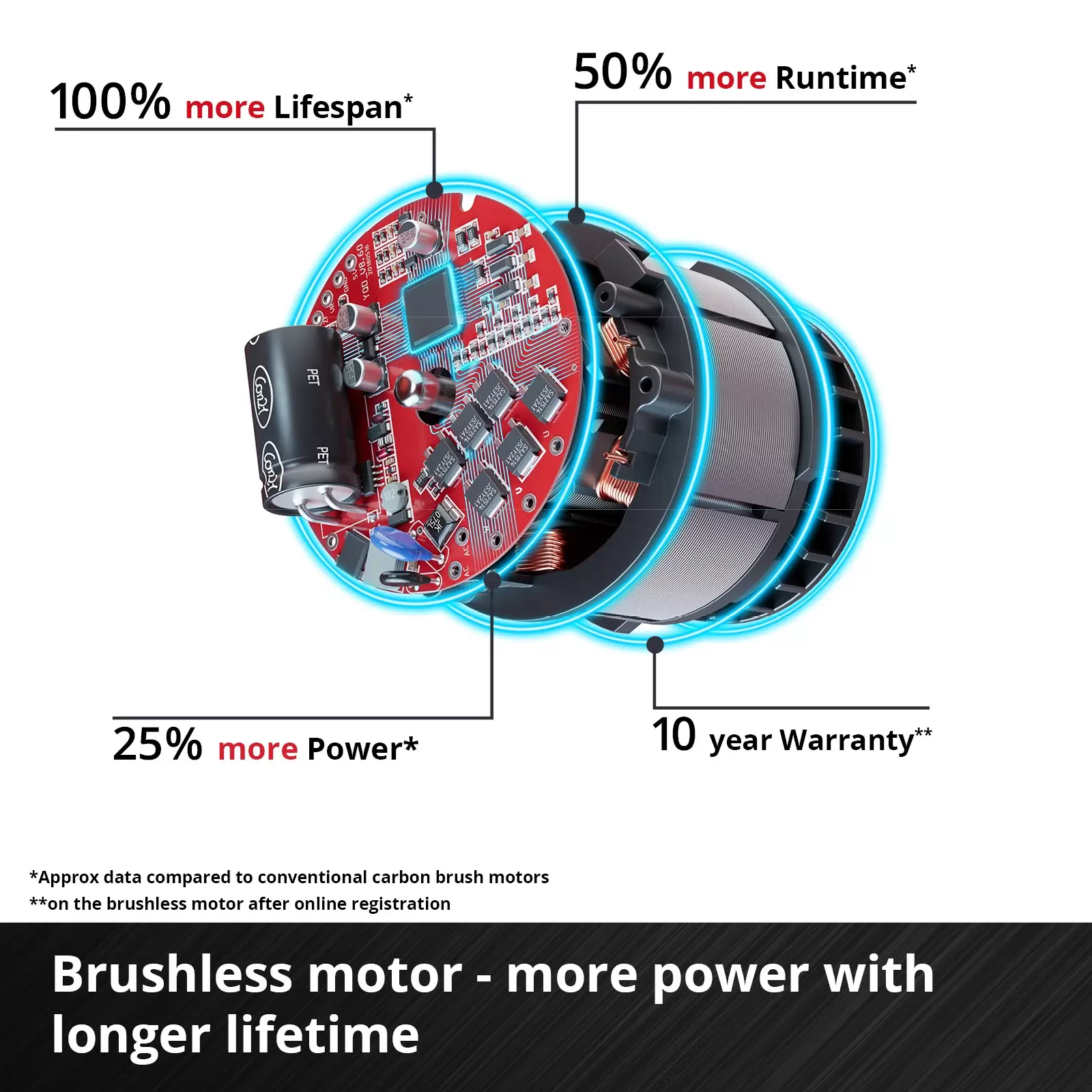

Powered by a brushless motor, it delivers more power, longer run time and zero maintenance. Register online to receive a 10‑year motor warranty.

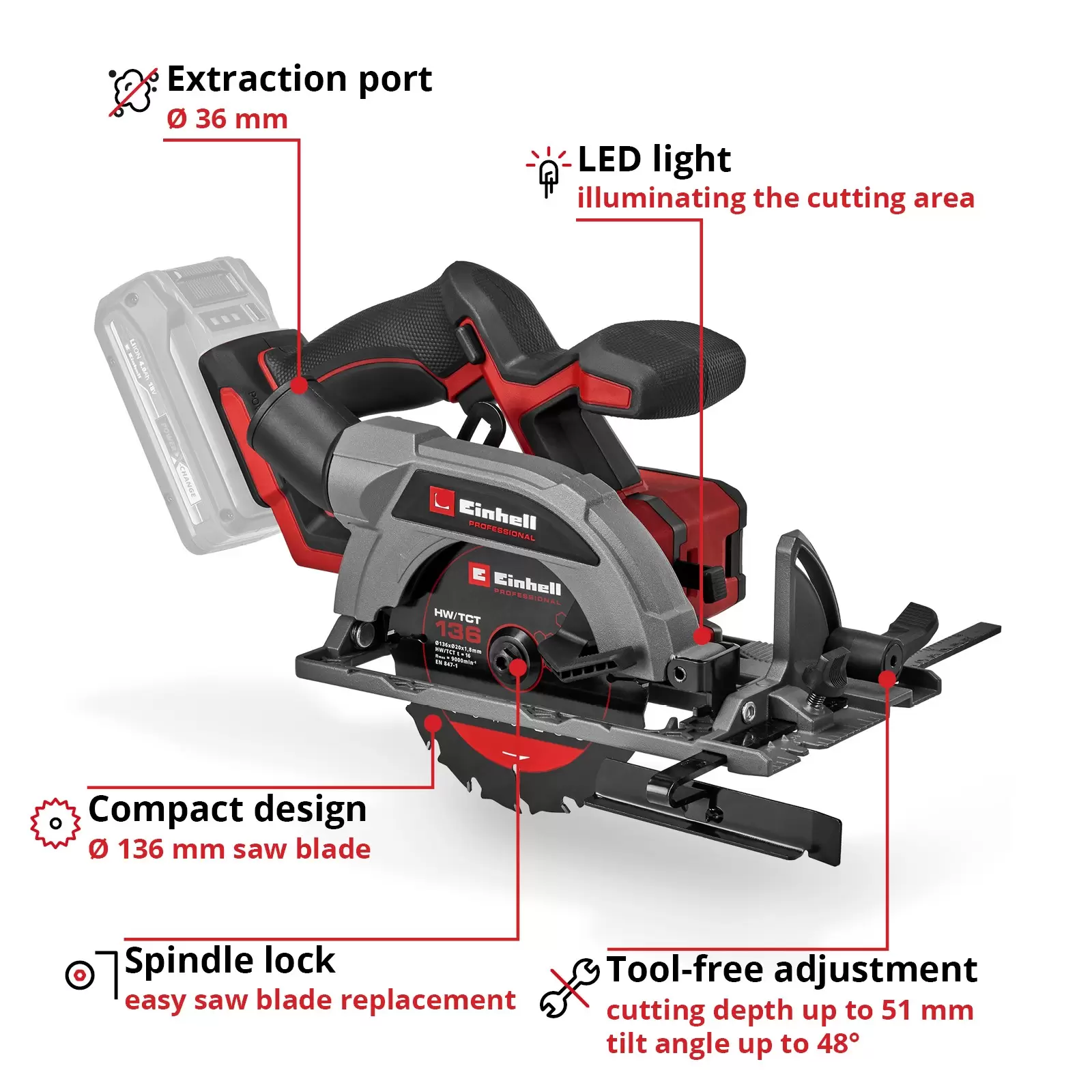

With a maximum cutting depth of 51 mm at 90°, the high‑quality 136 mm TCT saw blade (16 teeth) cuts effortlessly through timber. The blade is included and can be changed quickly and safely thanks to the spindle lock. Both cutting depth and bevel angle (up to 48°) are adjusted tool‑free for fast setup. Cutting aids such as the clearly visible cut‑line indicator, parallel guide, premium aluminium base plate and bright LED light ensure precise cuts and excellent visibility of the workpiece. The rotating dust extraction adapter and efficient chip ejection help keep your work area clean. For added safety and control, the saw features an electric motor brake, soft‑start function and soft‑grip surfaces.

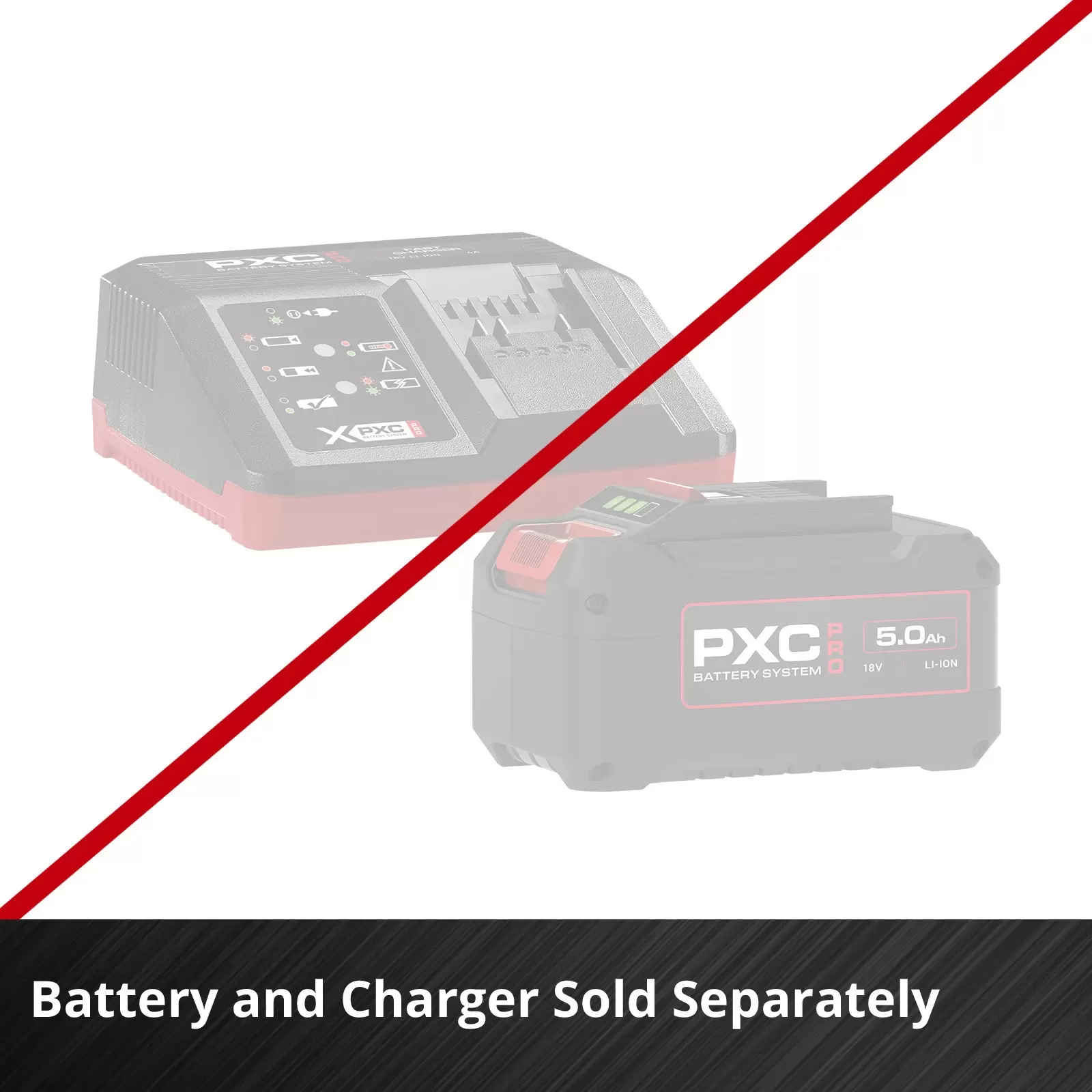

Supplied without battery or charger.
See more information
Show less information
Technical Specifications
Blade bore diameter
20 mm
Blade diameter
136 mm
Blade thickness
1.8 mm
Blade type
HW/TCT
Cutting depth at 45°
35 mm
Cutting depth at 90°
51 mm
Input
18 V
Motor type
Brushless
No load speed
4000 min^-1
Suction port diameter
35300 mm
Tool weight
2.9 kg
Ready to go
Perfectly equipped for your next project

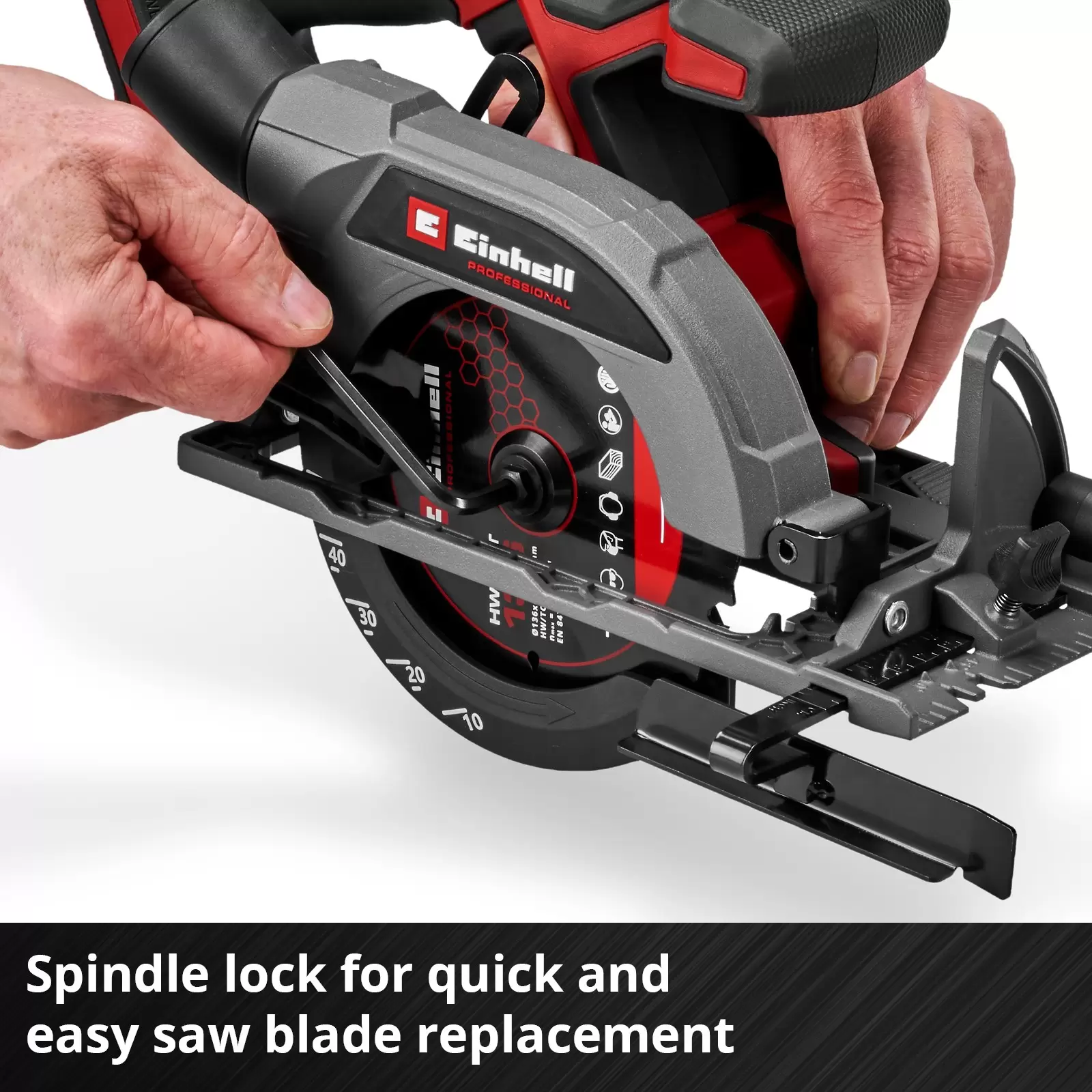

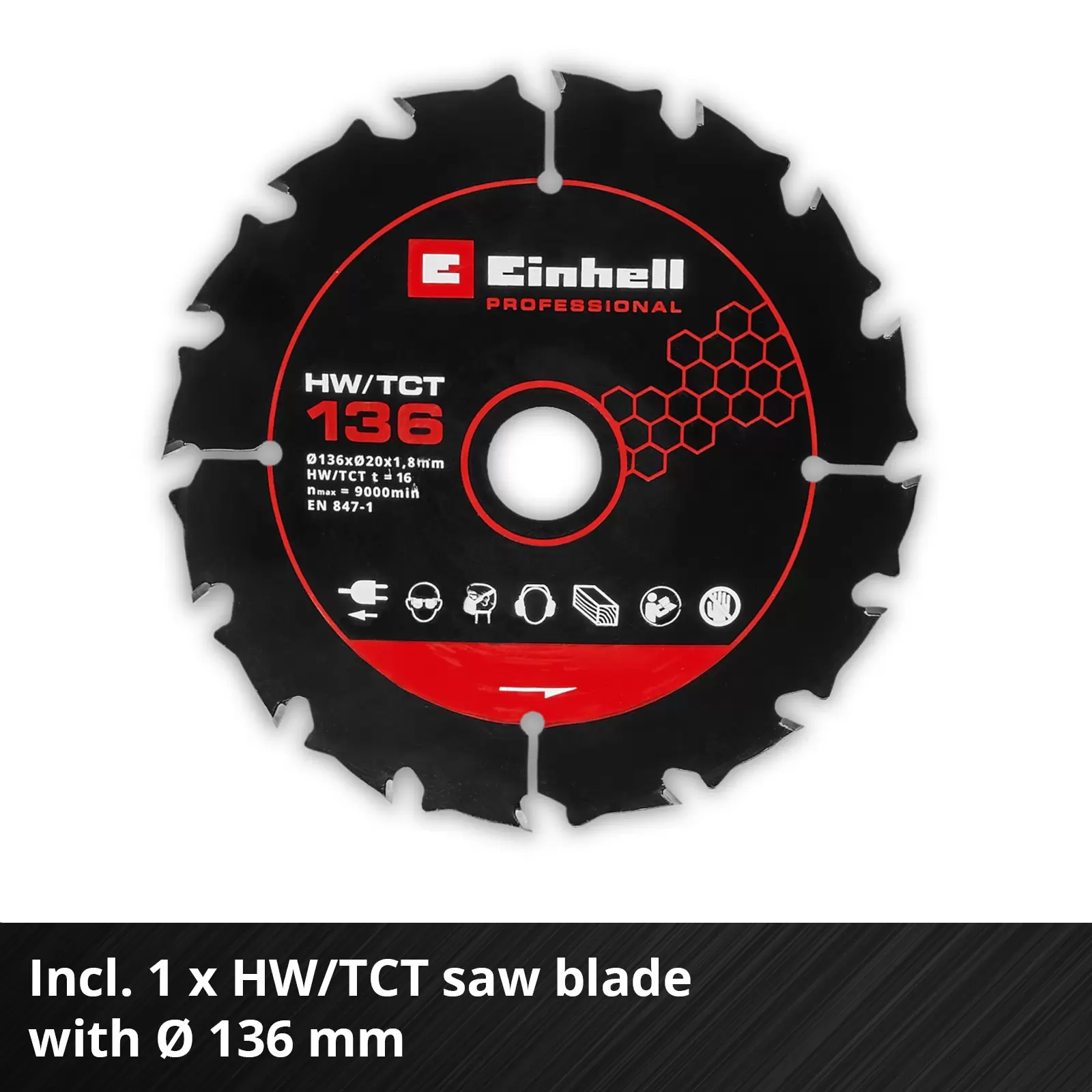

The compact Einhell Professional 18V 136mm Sub Compact Circular Saw Skin is supplied with a high‑quality TCT saw blade for wood (Ø 136 mm, 16 teeth). The blade mounts to the 20 mm arbor and can be changed easily using the spindle lock. Supplied without battery or charger; available separately, for example as a practical starter set.
Dust extraction adapter

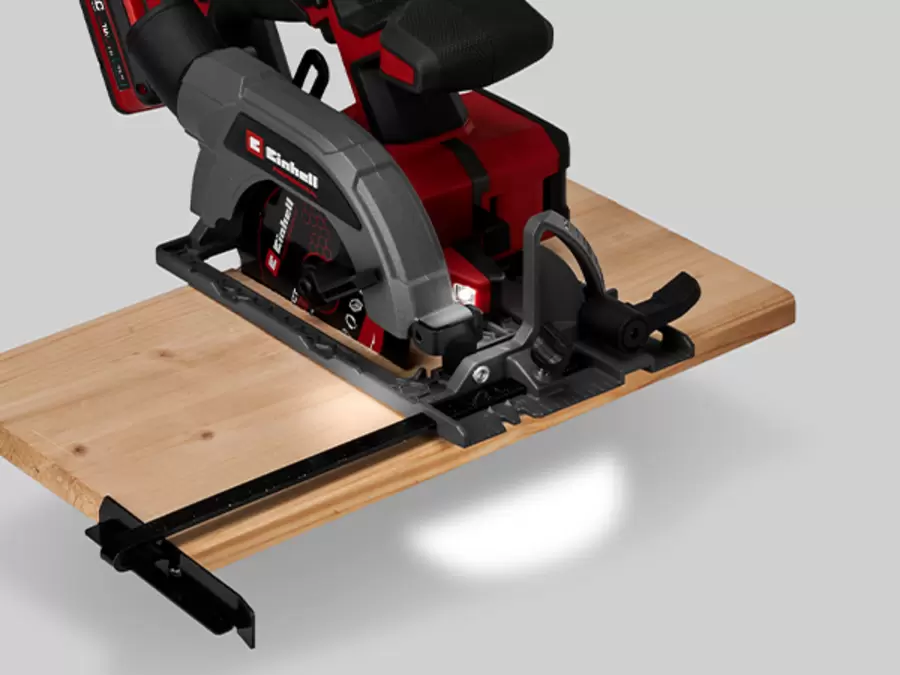

Integrated LED light
Saw table

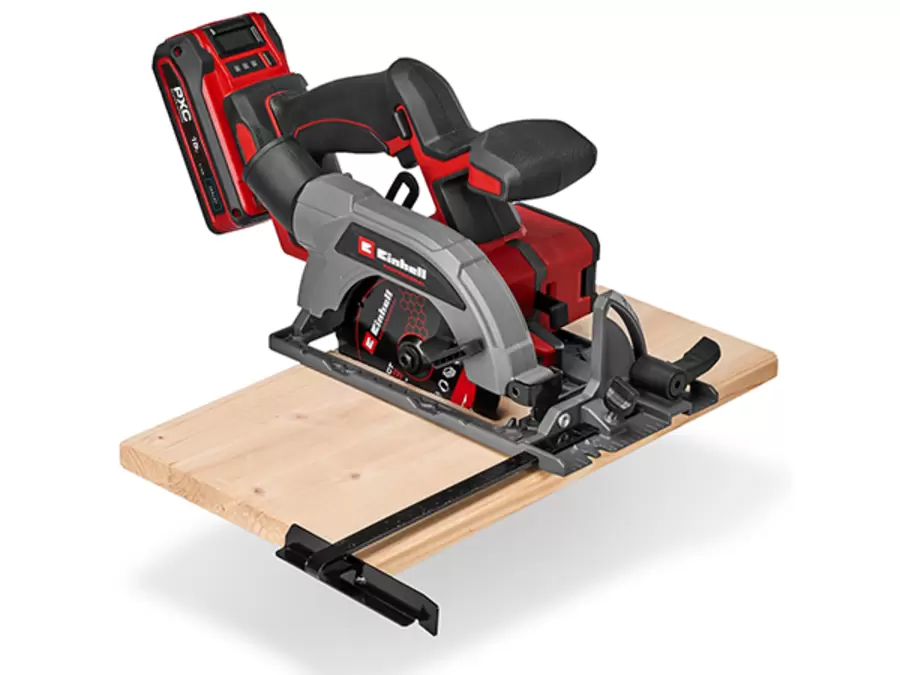

Parallel guide
Flexible cutting

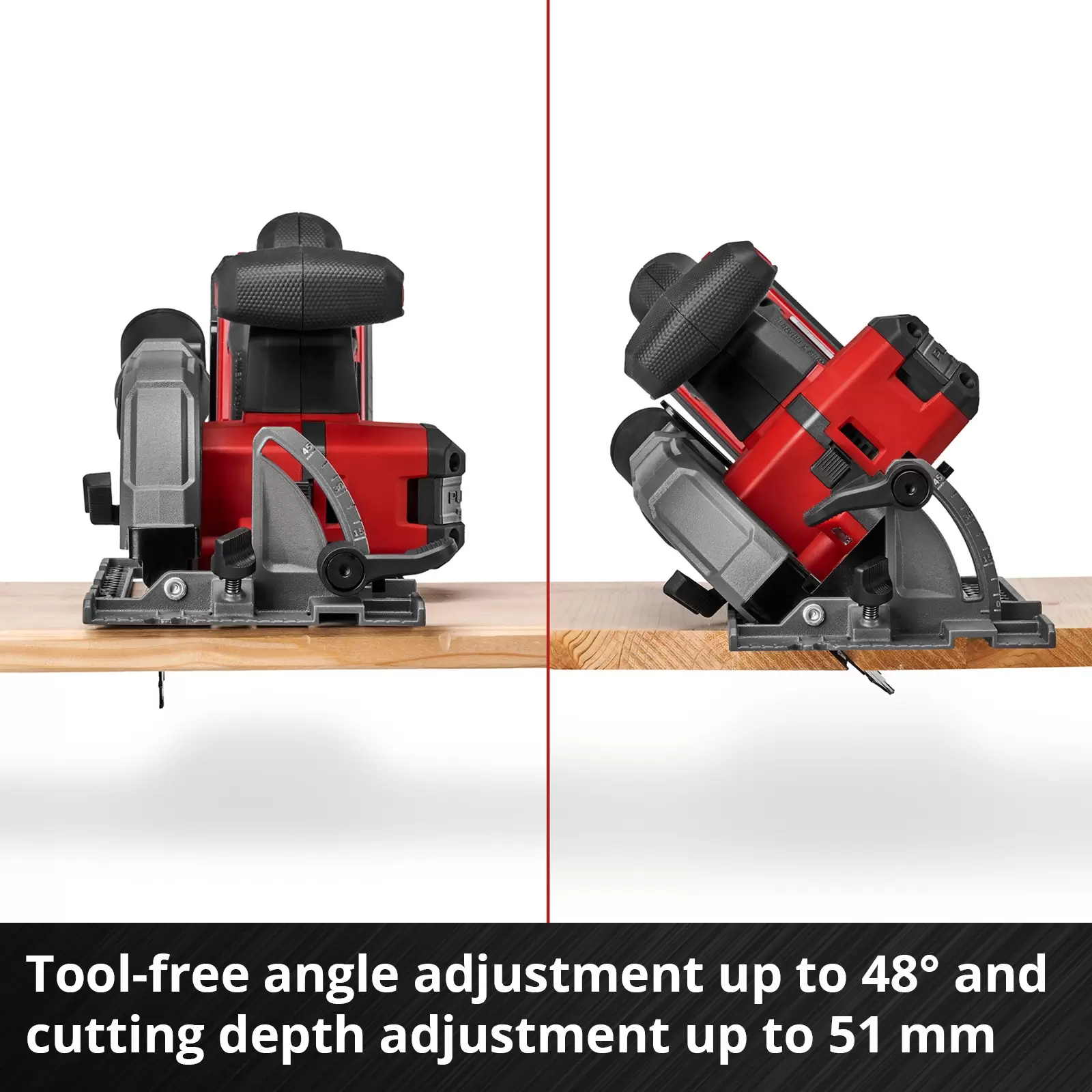

Tool‑free adjustment of cutting depth and bevel angle
The compact cordless circular saw offers a cutting depth of 51 mm at 90° and 35 mm at 45°. Both the cutting depth and bevel angle (up to 48°) can be adjusted quickly and without tools - allowing fast, flexible setup directly on the workpiece.
