18V Brushless 130Nm Hammer Drill Kit

Product Code: TP-CD 18/130-K Li-i BL (1x5,0Ah)I/N: 1170811

Part of the 18V PXC battery platform, requires 1 x 18V battery
Brushless motor – more power, longer run time
Brushless – 10-year motor warranty (after registration)
Anti‑kickback protection helps prevent injury from kickback
Hammer drilling function for drilling into stone and masonry
2-speed gearbox – for powerful drilling and driving
High‑quality metal keyless chuck
Infinitely variable speed control for material‑specific operation
Slip clutch prevents overtightening of screws
Joint‑friendly operation thanks to the auxiliary handle
Ergonomic design with soft grip for comfortable handling
Belt clip for quick storage in between uses
Built-in LED light to illuminate the work area
5.0Ah PXC Battery Battery and PXC charger included
130Nm of torque for the most demanding applications
Supplied in Pro System Small Sealed Case

See more information

Show less information

Article description

The Einhell Professional 18V 130Nm Hammer Drill Kit is a powerful all‑rounder for demanding screwdriving, drilling and hammer drilling tasks. As part of the 18V PXC range, it’s compatible with all PXC batteries and chargers.

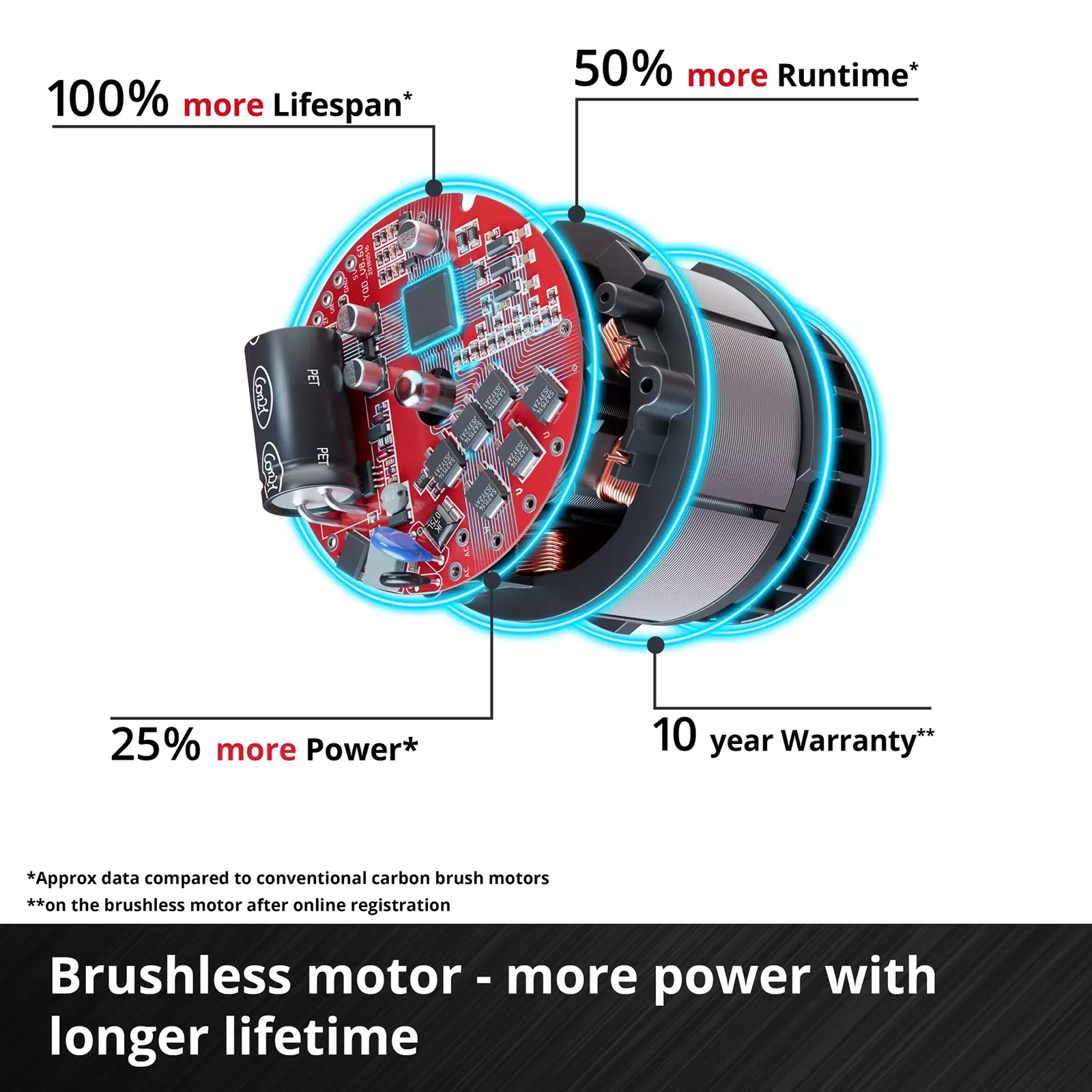

Powered by an Einhell brushless motor, it delivers more power and longer run time than conventional brushed motors. Register online to receive a 10‑year motor warranty.

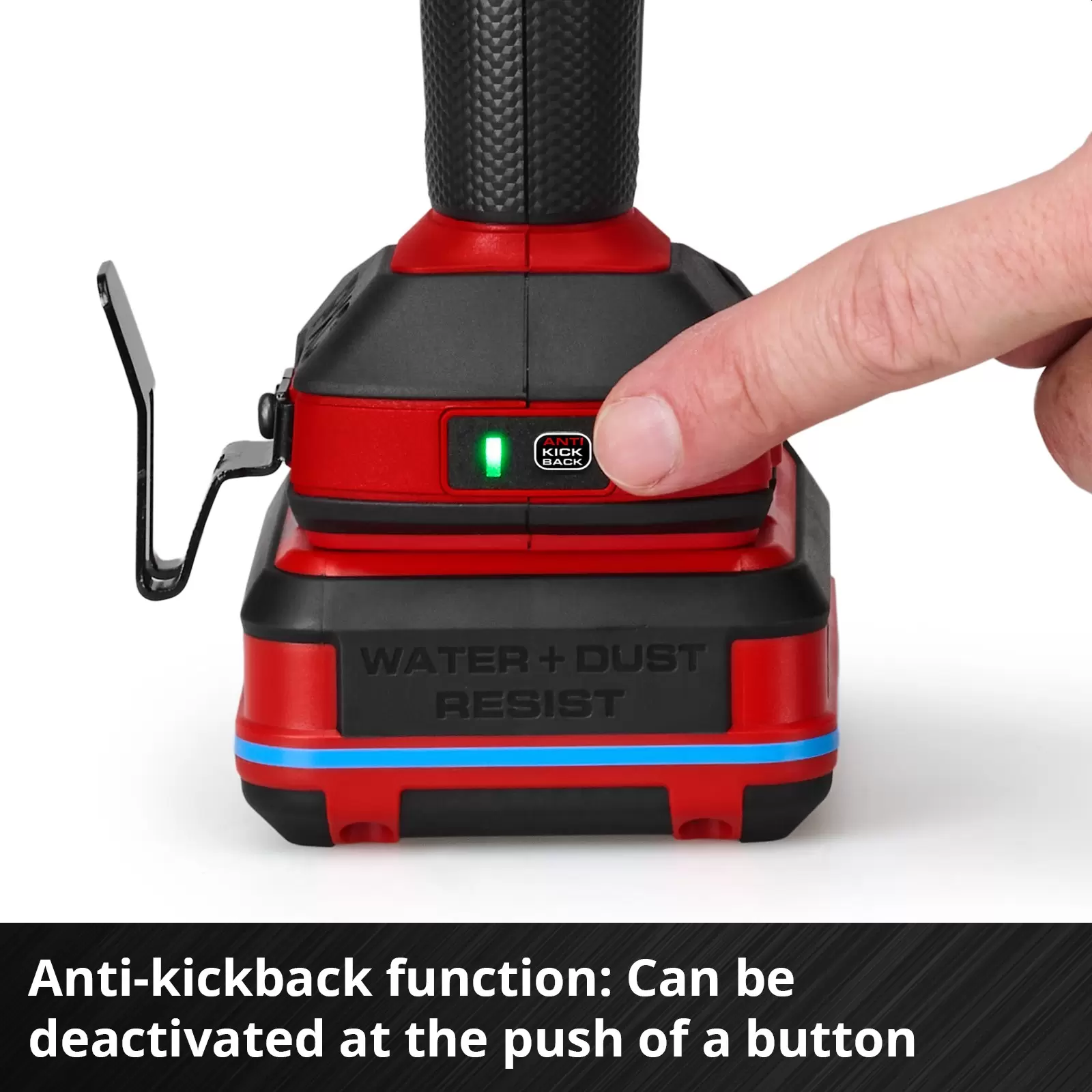

With 130 Nm of torque, 21 torque settings plus separate drilling and hammer drilling modes, it’s ideal for precise screwdriving as well as powerful drilling and hammer drilling in materials such as stone and masonry. The anti‑kickback function reduces kickback and helps protect against injury if the tool jams, and can be switched off at the touch of a button.

The 2‑speed gearbox ensures optimal torque transfer, while the high‑quality 13 mm metal keyless chuck allows fast tool changes. A slip clutch prevents overtightening, and electronic variable speed control ensures material‑specific operation. Comfort features include an ergonomic soft‑grip design, a joint‑friendly auxiliary handle and an integrated LED light for clear visibility. A practical belt clip allows safe storage between tasks.

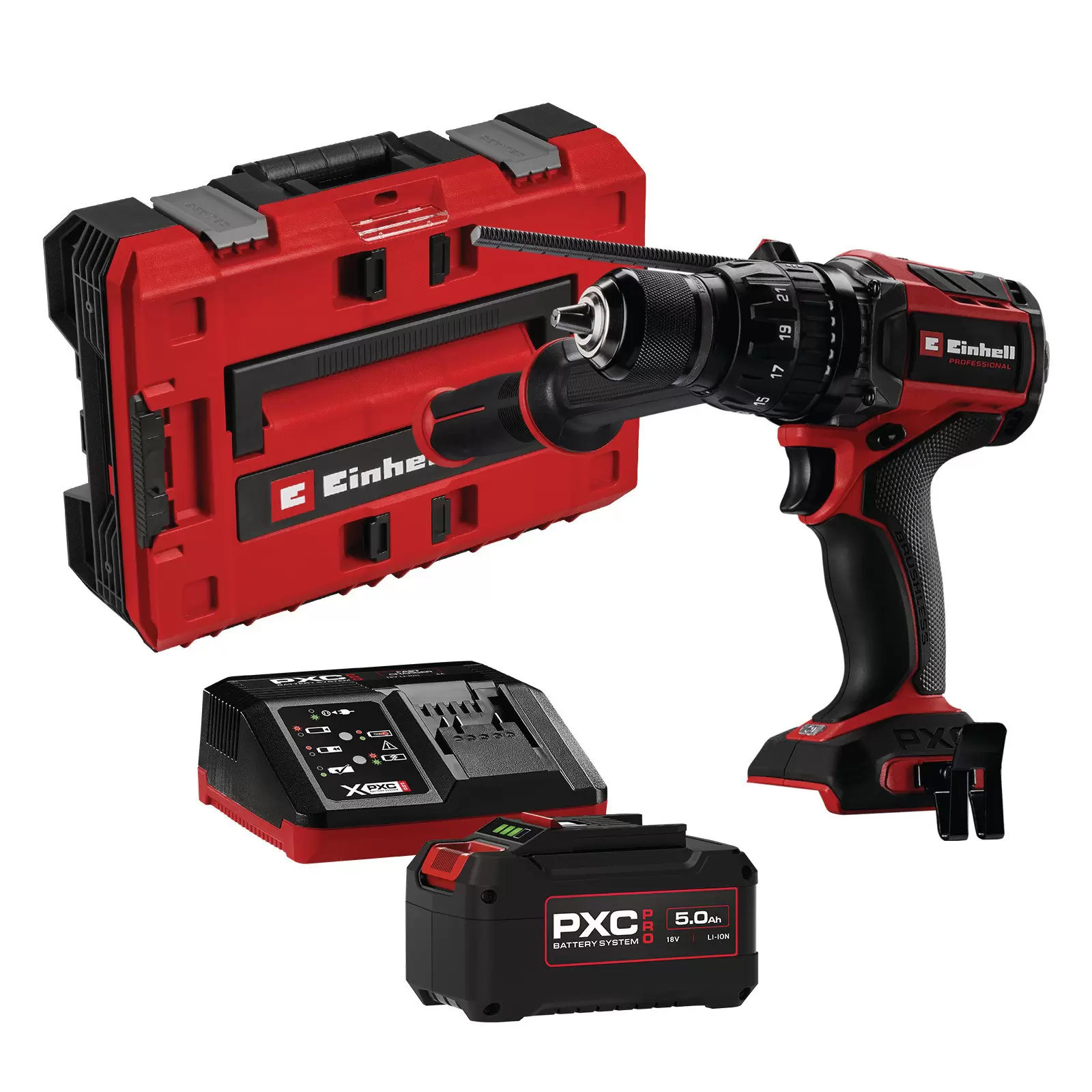

Supplied in Pro System Small Sealed Case. Incl. 18V PXC 5.0Ah battery and PXC charger.

See more information

Show less information

Technical Specifications

Chuck size max.

13 mm

Input

18 V

Max. Torque

130 Nm

Motor type

Brushless

Tool weight

1.78 kg

18V PXC

Cordless power for screwdriving, drilling and hammer drilling

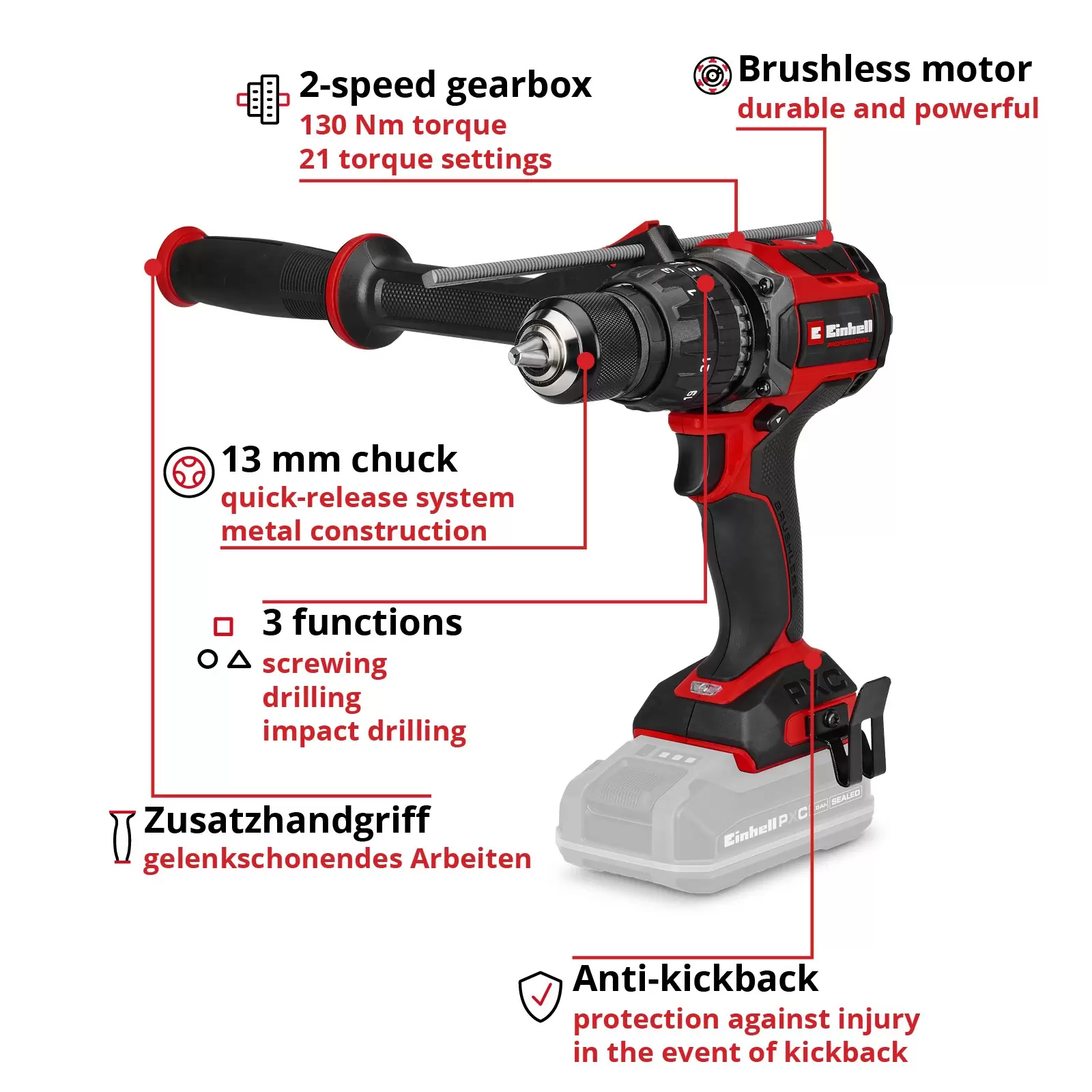

The Einhell Professional 18V 13Nm Hammer Drill Skin Kickback is part of the innovative 18V PXC Range. With up to 130 Nm of torque and a powerful 2‑speed gearbox, it delivers outstanding performance for demanding tasks. Three modes can be selected: screwdriving, drilling and hammer drilling with up to 27,300 impacts per minute - providing maximum power for every project. Includes 18V 5.0Ah PXC Battery & Charger.

Optimal visibility

The integrated LED light ensures clear visibility in low-light and hard-to-reach areas.

Handy belt clip

The belt clip allows the hammer drill driver to be safely and conveniently stored on your belt between tasks.

Ergonomic design

The ergonomic, slim design and the adjustable auxiliary handle with soft‑grip ensure a secure, comfortable hold.

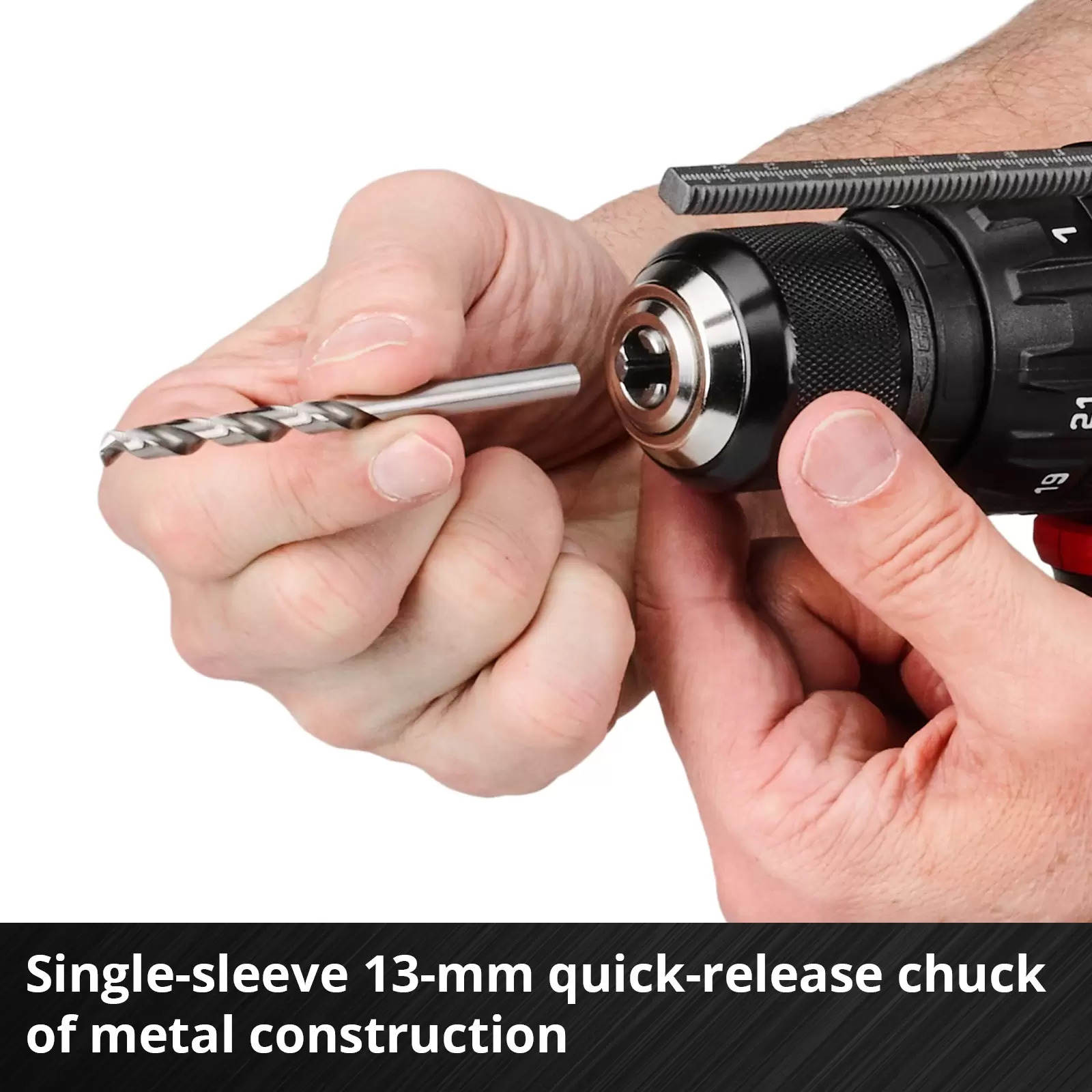

Metal chuck

The single‑sleeve 13 mm metal keyless chuck allows quick and easy tool changes.

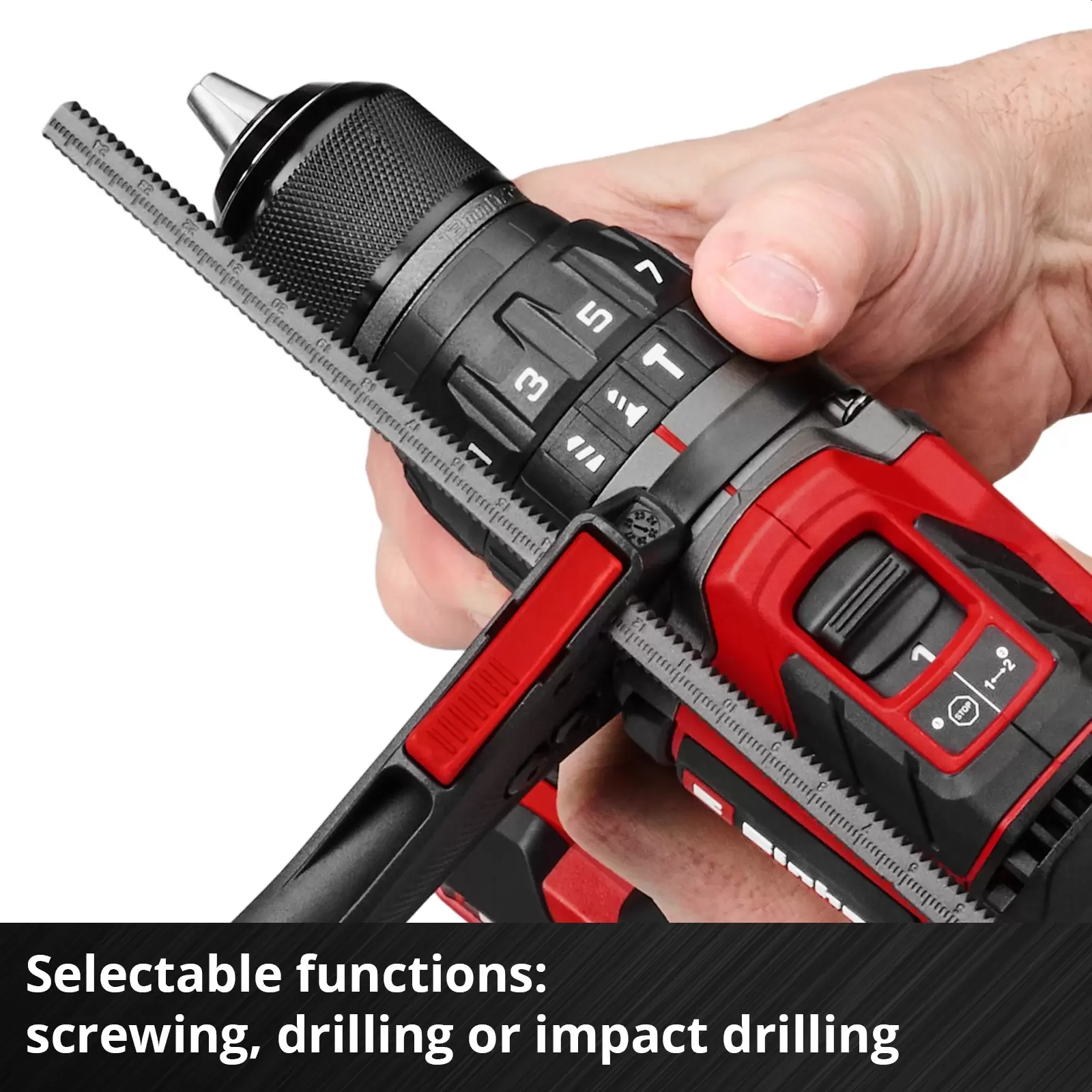

Fine control with torque settings

From delicate screwdriving to powerful drilling: with 21 adjustable torque settings plus separate drilling and hammer drilling modes, power can be precisely controlled, making the hammer drill driver ideal for a wide range of materials and applications.

Powerful 2-speed gearbox

First gear delivers maximum torque at low speed, ideal for driving long wood screws with ease. Second gear provides higher speed with reduced torque, perfect for drilling tasks or precise screwdriving in softer materials.
